MIR

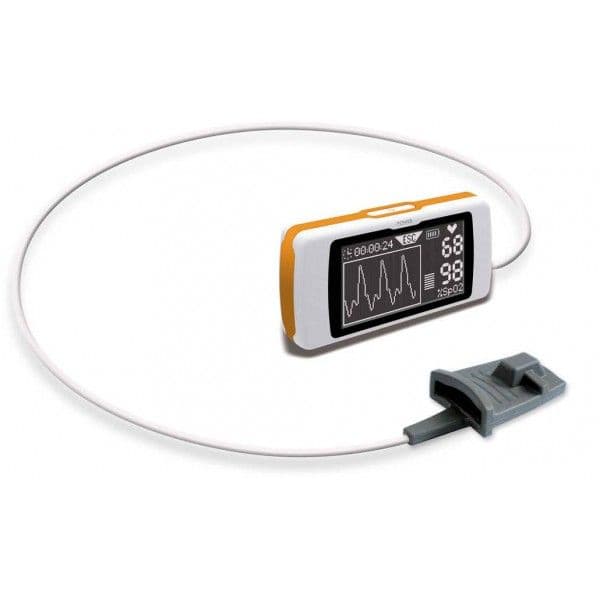

Spirodoc Touch Screen Portable Oximeter
SKU :
910606E
Overview
- Versatile Modes:
- - Spirodoc offers specialized modes for various needs, including advanced parameters for specialists, reduced settings for screening, and simplified operation for Home Care
- Intelligent Pulse Oximeter:
- - Get real-time SpO2 and HR measurements with a clear view of the plethysmographic curve
- Oxygen Therapy Estimation:
- - Spirodoc estimates required oxygen therapy level based on a single six-minute walk test
- 3D Accelerometer:
- - Incorporates a three-axis movement sensor for correlation between saturation level (%SpO2) and physical activity
- Comprehensive Motion Analysis:
- - Tracks walk count, movement analysis, and VMU for enhanced insights
- Patient's Home-Care Diary:
- - Quick on-screen symptoms entry for efficient homecare monitoring
- User-Friendly Touch Screen:
- - Complete touch screen with customizable questions and automatic answer recording for patient use
€990.00
SKU
910606E
Additional Information -
Technical Specifications:
- Flow sensor: bi-directional digital turbine
- Flow range ±16L/s
- Volume accuracy: ±3% o 50mL, whichever is greater
- Flow accuracy: ±5% o 200mL/s, whichever is greater
- Dynamic resistance at 12L/s: <0.5cmH2O/L/s
- Temperature sensor: semiconductor (0-45°C)
Measured Parameters:
| FVC | FEV1 | FEV1/FVC% |
| FEV3 | FEV3/FVC% | FEV6 |
| FEV1/FEV6% | PEF | FEF25% |
| FEF50% | FEF75% | FEF25%-75% |
| FET | Estimated Lung Age | Extr. Vol. |
| FIVC | FIV1 | FIV1/FIVC% |
| PIF | VC | IVC |
| IC | ERV | FEV1/VC% |
| VT | VE | Rf |
| ti | te | ti/t-tot |
| VT/ti | MVV measured | MVV calculated |
Central unit technical specifications:
- Display: LCD Backlit Touch screen Display
- Resolution: 128x64 pixels
- Power supply: Lithium ion 3.7V, 1100mA rechargeable battery
- Data transmission: USB 2.0 On-The-Go and Bluetooth® 2.1
- Accelerometer: Triaxial ± 2g, 400Hz sampling
- Dimensions and weight: central unit 101x48x16mm, 99g
- removable turbine head: 46x47x24mm, 17g
- Battery charger (optional): 100VAC - 240VAC, 50Hz-60Hz output 5VDC, 500mA, micro USB type B
Pulse-oximeter technical specifications
- SpO2 range: 0-99%
- SpO2 accuracy: ±2% (70-99% SpO2)
- Heart rate range: 30-254BPM
- Heart rate accuracy: ±2BPM or 2%, whichever is greater
Pulse-oximeter measured parameters (standard)
| Parameter | Parameter | Parameter |
|---|---|---|
| SpO2 [Baseline, Min, Max, Mean] | Pulse rate [Baseline, Min, Max, Mean] | T90% [SpO2<90%] |
| T89% [SpO2<89%] | T88% [SpO2<88%] | T5% [ΔSpO2>5%] |
| ΔIndex [12s] | SpO2 Events | Pulse rate events [Bradycardia, Tachycardia] |
| Step counter | Movement [VMU] | Recording time |
| Analysis time |
Sleep analysis (specific parameters)
| Body Position | SpO2 Events | Desaturation Index (ODI) |
| Desaturation [Mean Value, Mean duration, Longest duration, Nadir Peak] | ΔSpO2 [Min Drop, Max Drop] | Total Pulse Variations |
| Pulse Rate Index | NOD89% [SpO2<89%; >5min] | NOD4% [SpO2 Basale-4%; >5min] |
| NOD90% [SpO2<90%; Nadir<86%; >5min] |
6MWT (6 Minute Walk Test specific parameters)
| O2-Gap | Estimated Distance | Distance Walked |
| Predicted Distance [Min, Standard] | TΔ2% [SpO2≥2%] | TΔ4% [ΔSpO2≥4%] |
| Time [Rest, Walking, Recovery] | Desaturation Area/Distance | Optional data entry: Borg Dyspnea [Baseline, End, Change] |
| Optional data entry: Borg Fatigue [Baseline, End, Change] | Optional data entry: Arterial Blood Pressure [Systolic, Diastolic] | Optional data entry: Oxygen Administered |
Product Codes -
| SKU | 910606E |
|---|---|
| Manufacturer | MIR |
| Medicinal Product | No |
