PM60 Mindray Pulse Oximeters and Accessories
SKU :
PM60-GROUP
Overview

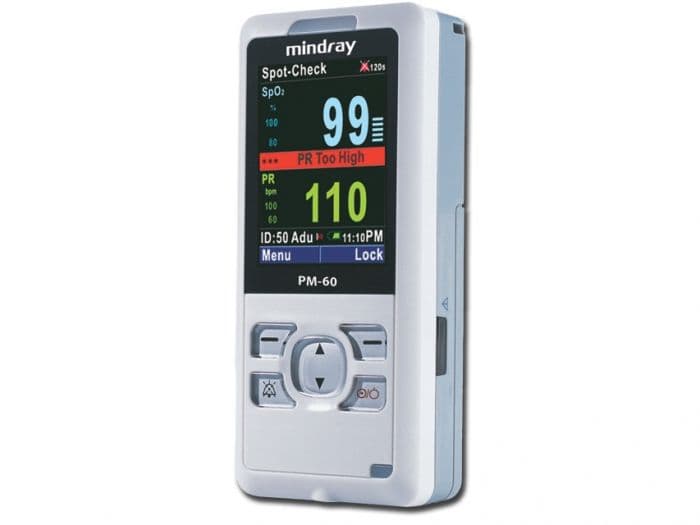

- Miniature, lightweight device capable of spot-check and continuous monitoring of SpO2 and pulse rate
- High resolution 2.4" color LCD display
- Two selectable working modes: spot check and continuous monitoring with adjustable audible and visual alarms
- Real-time data transfer by infrared technology
- Batteries will support up to 36-hour continuous working
- Supplied with a protective cover and carrying case which makes the PM60 perfect for portable monitoring needs
- If pulse oximetry varies from day to day, or perhaps hour to hour, PM-60 is ideal as your device of choice
- Suitable for use by adult, paediatric and neonatal patients
- Please note this device is supplied with adult reusable sensor only
SKU
PM60-GROUP
Additional Information -
- The pulse oximeter is intended for continuously monitoring, spot checking, displaying, storing and transferring oxygen saturation and pulse rate of single adult, pediatric and neonatal patients in hospitals, emergency treatment, patient transport and home care.Technical Specifications
- Display: 2.4“ color TFT
- Resolution: 320 x 240
- Multi displays selectable: standard or waveform screen
- Trace: 1 plethysmogram waveform
- Indicator: alarm indicator light, power indicator light, pulse tone, alarm sound, button tones
- Interface: dual-purpose socket for connecting SpO2 sensor and communication cable IR interface: infrared link allows downloading realtime patient data to computer
- DC power interface: Charger stand for Li-ion battery
- DC power requirements: input voltage 5V DC Power 1.2A
- Battery:
- - Li-ion battery 24 hours continuous working
- - 3xAA batteries 36 hours continuous working
- Trend memory:
- - Monitoring mode: Resolution: 2s - Maximum time: 96 h
- - Spot-check mode: Review of up to 4000 data, measure up to 99 patients
- Alarm: user adjustable high and low limits 3-level audible and visual alarm
SpO2
- Measurement range: 0~100% ±2% (70~100%)
- Resolution: 1% Alarm range: 50~100%
- Refreshing rate: 1 s
- Averaging time:
- - 7 s (sensitivity set HIGH)
- - 9 s (sensitivity set MED)
- - 11 s (sensitivity set LOW)
Pulse rate
- Range: 18~300 bpm
- - (±3 bpm non-motion)
- - (±5 bpm motion)
- - Alarm range: 18~300 bpm
- Resolution: 1 bpm
- Refreshing rate: 1 s
- Averaging time: same as SpO2
- Type of protection: Class II with internal electric power supply
- Degree of protection: BF (defibrillation proof)
- Protection against ingress of liquid: 1P x 2
Optional Extras- Protective Cover for Mindray PM
Product Codes -
| SKU | PM60-GROUP |
|---|---|
| Medicinal Product | No |
