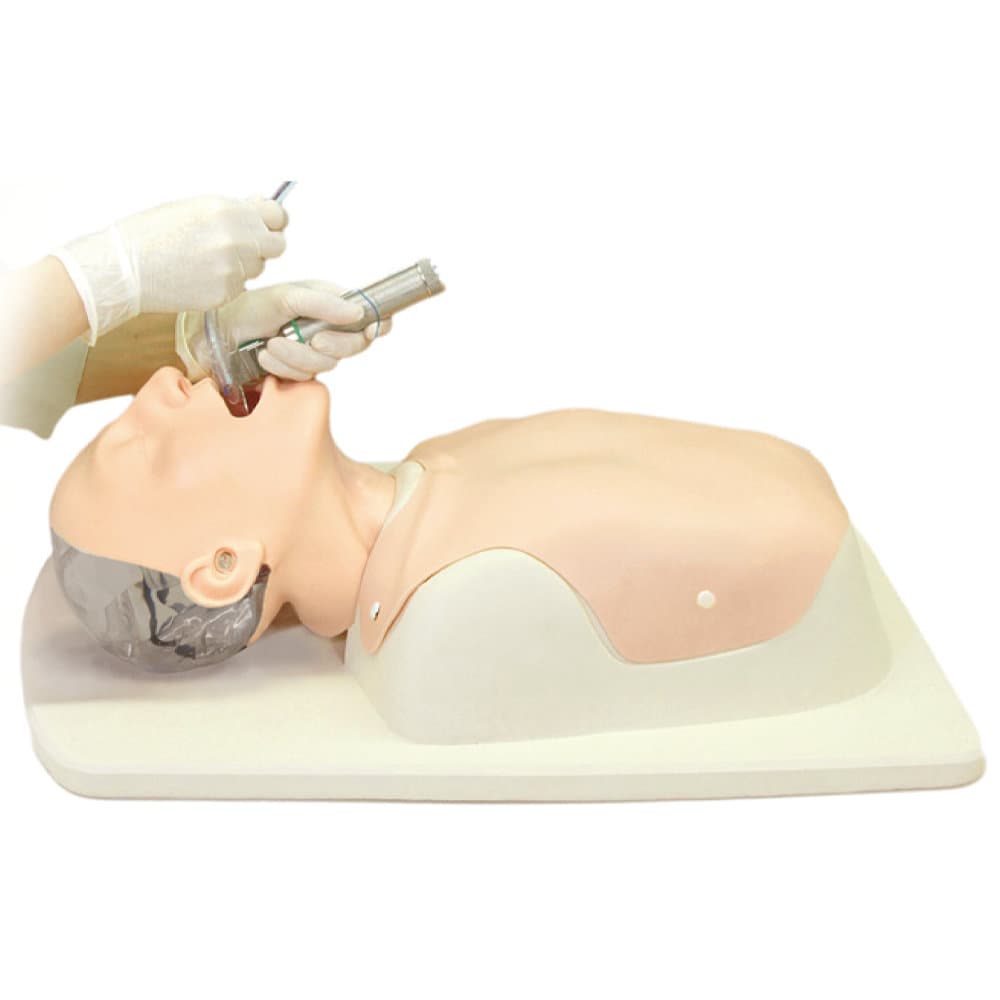

MW13 Difficult Airway Management Simulator - Training Model
SKU :
MW13-CONFIG
Overview
- Difficult Airway Management Simulator provides training for users with a range of difficulty levels
- The Training Model is iGel Compatible
- 24 variations of patient scenario (including 1 normal case):
- - 3 stages of mouth opening
- - 2 stages of neck flexibility, 2 tongue sizes
- - 2 positions of the vocal cords
- Upper incisors are designed to break off when excessive force is applied
- For Nasal intubation: anatomically correct middle and inferior nasal concha to lean direction of the tube
Available Options
Please contact your Key Account Manager for Direct Sales
SKU
MW13-CONFIG
Additional Information -
Specifications:
| Training skills / Applications | Airway opening techniques (head tilt, jaw thrust) Bag-Valve-Mask ventilation Pre-intubation airway assessment Recreating the sniffing position Pressurization of external larynx to improve the laryngeal view Intraoral/Intranasal Intubation Use of oropharyngeal airway (OPA) Use of nasopharyngeal airway (NPA) Use of laryngeal airway mask Use of video laryngoscope Confirmation of successful ventilation by: -observation of thoracic and abdominal movement (lung expanding, stomach inflating) or auscultation of the chest Simulates incorrect procedures including intubation in the esophagus and unilateral intubation Practice securing tubes after intubation |
|---|---|
| Case / Pathology | Variation of DAM Setting Neck Flexibility (Life-like jaw movement) Mouth Opening/ - Normal /- Intermediate /- Difficult Tongue/ - Normal/- Swollen Laryngospasm/ - Normal/ - Laryngospasm |
| Set includes | 1 manikin/ 3 upper incisors/ 1 lubricant/ 1 syringe/ 1carrying bag/ 1 instruction manual |
| Size (approx.) | W70 x D39 x H25 cm / W27.6 x D15.4 x H9.8 in |
| Weight (approx.) | 7.0kg / 15.4lb |
| Materials | Soft resin/Latex free |
| Replacement parts | 11392-010 10 upper incisors / 11392-090 1 face mask/11392-040 1 chest cover/11392-080 2 replacement tongues II / 11392-050 5 pair of lungs/11392-060 5 stomachs/11229-050 lubricant |
| Optional parts | 11384-100 bronchofiberscopy training unit |
Product Codes -
| SKU | MW13-CONFIG |
|---|---|
| Medicinal Product | No |
