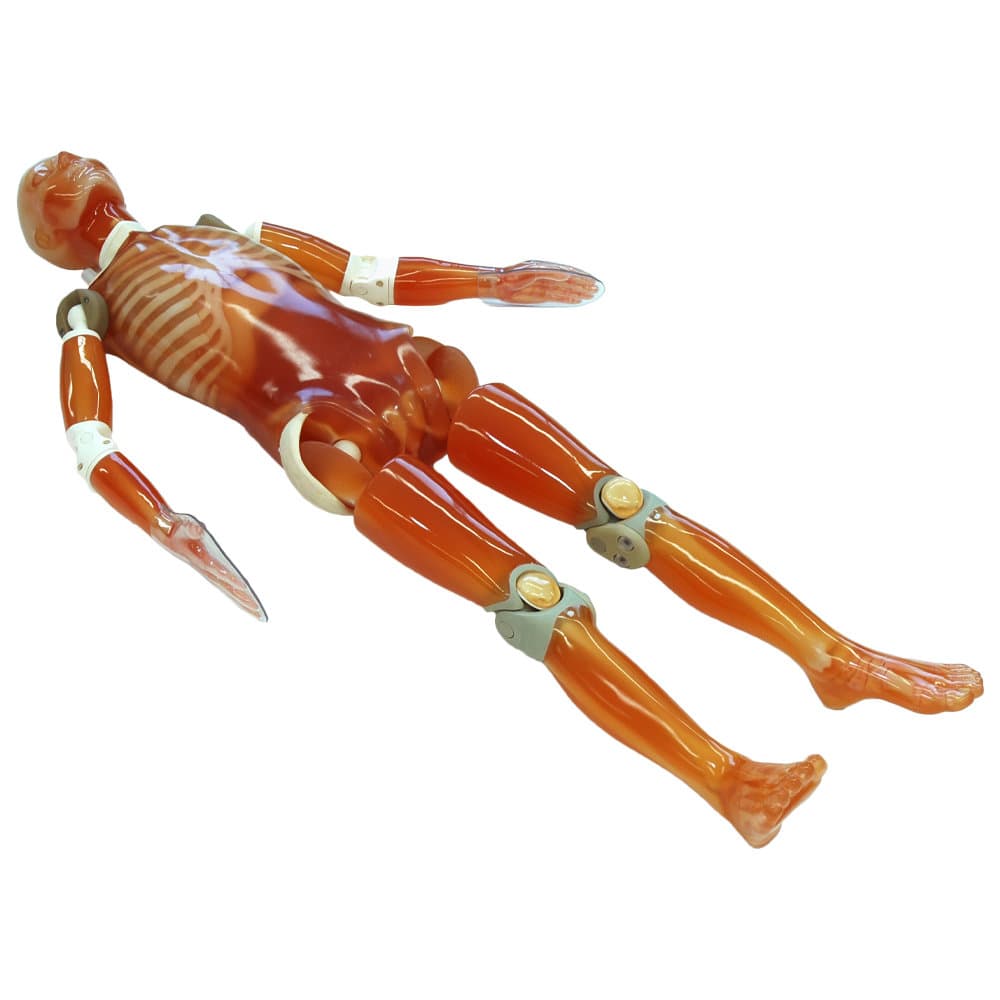

PE-2E CT Whole Body Phantom with Pathologies
SKU :
41350-700
Overview
- Radiology absorption and HU number approximate to human body
- Main joints have close-to human articulation
- Phantom can be disassembled into 10 individual parts
Shoulders:
- Rotate through a full 360 degrees in the sagittal plane, approx. 180 degrees to side-ways.
Hip joints:
- Rotate forward up to approx. 90 degrees, then abduct up to 45 degrees each
Elbows and Knees:
- Bend up to approx. 90 degrees.
- The phantom can be held in the supine frog leg position.
Please contact your Key Account Manager for Direct Sales
SKU
41350-700
Additional Information -
Specifications
| Training Skills / Applications | Plain X-ray / CT / Basic patient positioning |
| Case / Pathology | Refer to PDF (Anatomy and Pathologies) |
| Set includes |
|
| Height (approx.) | 165 cm / 65in |
| Weight (approx.) | 50 kg / 110 lb |
| Materials |
|
| Replacement parts |
|
| Optional parts |
|
Anatomy
| HU NUMBER | ( ) ＝ HU number at 80keV |
| Pathologies | Brain tumor (130) Subarachnoid hemorrhage (90) Pulmonary tumor (inside:30 / outside:130) Hepatic tumor (10) Pancreatitis (30) Gallstone (170) Kidney stone (170) Appendicitis (inside:30 / outside:40) Spondylolisthesis (-) |
| Head | Synthetic skull / Spine / Brain_cerebrum (40) / Mesencephalon (40) / Cerebellum (40) / Cerebral ventricles (10) / Eye balls (20) / Arteries with contrast medium (left half only) (250) |
| Trunk | Spine / Clavicle / Ribs / Sternum / Scapulae / Lungs (-1000) / Pulmonary vessels (8) / Trachea (wall:8 / inside:-1000) / Heart (40) / Liver (70) / Portal and hepatic veins (40) / Pancreas (30) / Kidneys (30) / Gallbladder (20) / Spleen (50) / Seminal vesicle (25) / Prostate (50) / Aorta (40) / Cava (70) / Ureter (wall:30 / inside:10) / Urinary bladder (10) / Rectum (wall:70 / inside:-800) / Sigmoid colon (wall:70 / inside:-800) / Coxal bones |
| Limbs | Humerus / Antebrachial bone / Bones of hand / Femur / Bones of foot |
| Bony Structure | Synthetic skull / Cervical vertebrae / Vertebrae / Clavicles / Ribs / Sternum / Scapula / Coxal bones / Femurs |
Product Codes -
| SKU | 41350-700 |
|---|---|
| Manufacturer | Kyoto Kagaku |
| Medicinal Product | No |
